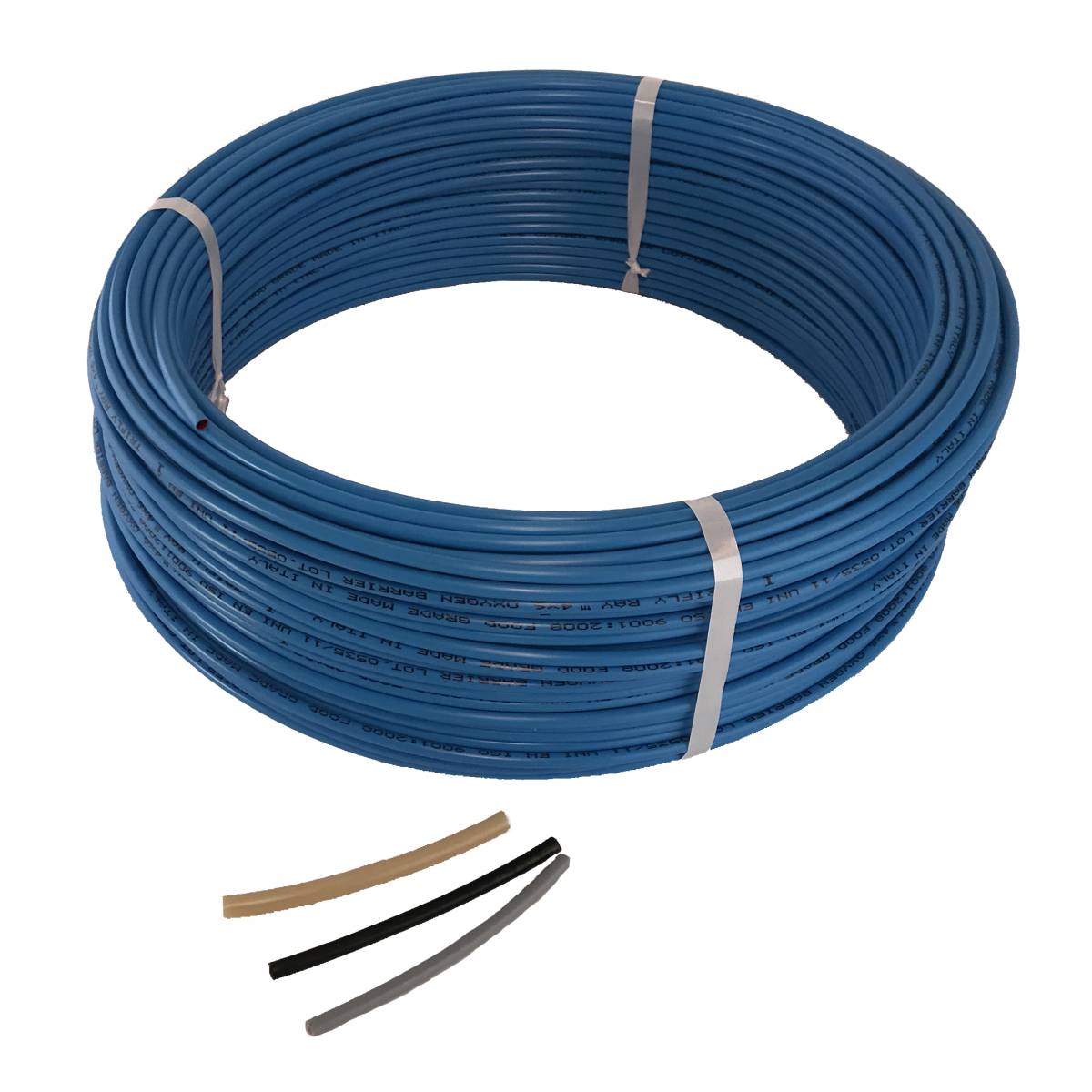

TRIFLY RAY™ oxygen barrier calibrated tubes

Norms

REACH

ROHS

Application sectors

PROPRIETA' FISICHE / MECCANICHE	METODO DI PROVA	VALORE
Density	ISO 1183	0,930 g/cm³
Hardness	ISO 868	60 ShD
Water absorption	a 23°C 50% r.h.	<1%
Elongation at break	ISO 527	> 800%
Flexural modulus	ISO 178	700 MPa
Elastic modulus	ISO 527	580 MPa
Elastic modulus	DIN 53516 - ISO4649	25 mm³
Exposition temperature	-	- 30°C / +80°C
Working temperature	-	+0°C / + 60°C

TECHNICAL CHARACTERISTICS:
Tubes nade of tri-extrusion of polyolefin materials, with Oxygen Barrier (EVOH) characteristic. - The applied technology is particularly suitable for making pipes for hot and cold water systems, such as celling and eall heating systems, for connecting solar panels, in general for all those technical applications connected to the transport of hot water and cold, inert gases, air, wherever the ability of the product to resist high and low tempertures is necessary- Medium flexibility. - Low permeation rate. - Marked chemical resistance.

MARKING :
| TRILFY RAY^TM 5.5X8 OXYGEN BARRIER LOT .../.. UNI EN ISO 9001:2015 MADE IN ITALY

The marking is printed every 50 cm.

NOTE: The tube supports enlargements of no more than 15%. Check the assembly and connection with appropriate fittings suitable for the application.

DOWNLOAD

TECHNICAL DATA SHEET 51.1

51-1Rev-TRIFLYRAYOXYGENBARRIER.pdf

Product list

Select colour and size and send a request

Code

TFOX46SB01

Dim. Ø Int. (mm): 4
Dim. Ø Est. (mm): 6
Working pressure (Bar): 20
Bursting pressure (Bar): 80
Bending ray (mm): 50
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters per package: 0
UL94: 0
Meters per weight: 0

Select colour STANDARD

Select colour On demand (Minimum quantity order to be agreed)

SKYBLUE

Login to see prices, availability and make a request.

Code

TFOX558SB02

Dim. Ø Int. (mm): 5.5
Dim. Ø Est. (mm): 8
Working pressure (Bar): 19
Bursting pressure (Bar): 76
Bending ray (mm): 50
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters per package: 0
UL94: 0
Meters per weight: 0

Select colour STANDARD

Select colour On demand (Minimum quantity order to be agreed)

SKYBLUE

Login to see prices, availability and make a request.

Code

TFOX68SB09

Dim. Ø Int. (mm): 6
Dim. Ø Est. (mm): 8
Working pressure (Bar): 17
Bursting pressure (Bar): 68
Bending ray (mm): 50
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters per package: 0
UL94: 0
Meters per weight: 0

Select colour STANDARD

Select colour On demand (Minimum quantity order to be agreed)

SKYBLUE

Login to see prices, availability and make a request.

Code

TFOX710SB03

Dim. Ø Int. (mm): 7
Dim. Ø Est. (mm): 10
Working pressure (Bar): 18
Bursting pressure (Bar): 74
Bending ray (mm): 60
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters per package: 0
UL94: 0
Meters per weight: 0

Select colour STANDARD

Select colour On demand (Minimum quantity order to be agreed)

SKYBLUE

Login to see prices, availability and make a request.

Code

TFOX810SB10

Dim. Ø Int. (mm): 8
Dim. Ø Est. (mm): 10
Working pressure (Bar): 15
Bursting pressure (Bar): 60
Bending ray (mm): 60
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters per package: 0
UL94: 0
Meters per weight: 0

Select colour STANDARD

Select colour On demand (Minimum quantity order to be agreed)

SKYBLUE

Login to see prices, availability and make a request.

Code

TFOX1216SB05

Dim. Ø Int. (mm): 12
Dim. Ø Est. (mm): 16
Working pressure (Bar): 15
Bursting pressure (Bar): 60
Bending ray (mm): 150
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters per package: 0
UL94: 0
Meters per weight: 0

Select colour STANDARD

Select colour On demand (Minimum quantity order to be agreed)

SKYBLUE

Login to see prices, availability and make a request.

Code

TFOX1620SB04

Dim. Ø Int. (mm): 16
Dim. Ø Est. (mm): 20
Working pressure (Bar): 12
Bursting pressure (Bar): 50
Bending ray (mm): 200
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters per package: 0
UL94: 0
Meters per weight: 0

Select colour STANDARD

Select colour On demand (Minimum quantity order to be agreed)

SKYBLUE

Login to see prices, availability and make a request.
