PVC tubes

Norms

REACH

ROHS

Application fields

PHYSICAL / MECHANICAL PROPERTIES	TRIAL METHOD	VALUE
Hardness	ISO 868	57 ShA
Specific weight	ISO 1183	1,20 g/cm³
Elongation at break	ISO 527	460%
Breaking load	ISO 527	13 N/mm²
Max working depression	-	-50 Pa
Working temperature	-	- 30°C / +50°C

TECHNICAL CHARACTERISTICS

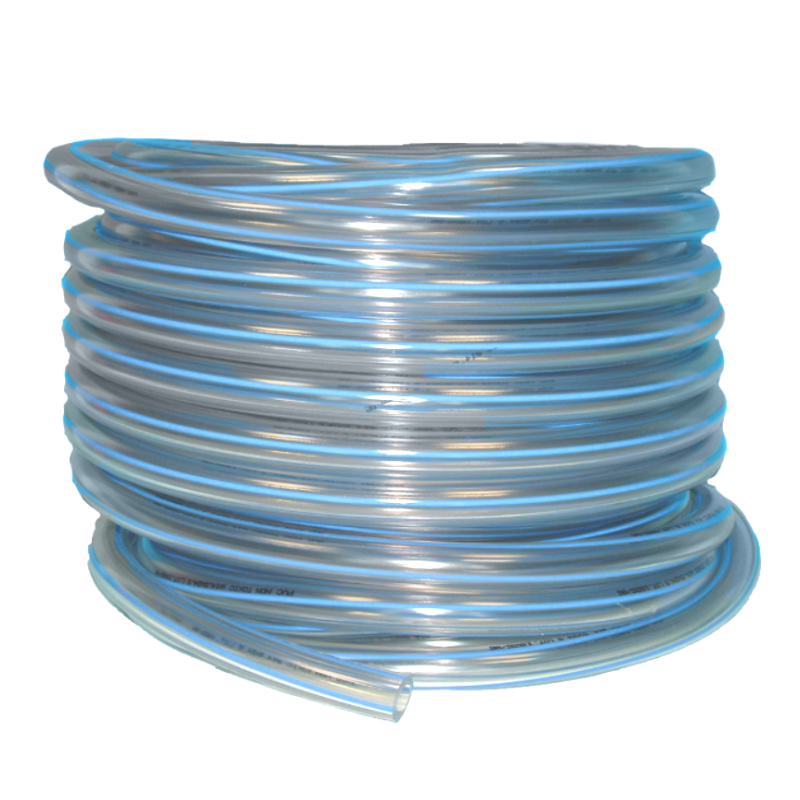

Tube realized in PVC.
The basic constituents of the raw materials are included in the list of additives approved by Reg. CE 10/2011 and Reg. CE 1935/2004.
The tube is realized in natural single version with one or four blue longitudinal lines, or further colours according to the customer’s request.
This type of tube is particularly indicated for the transport of different liquid, doughy and dry substances.

STANDARD MARKING:

| PVC Ø16X26 LOT…/.. MADE IN ITALY
Marking is printed every 50 cm. Customized marking on demand

Product list

Select colour and size and send a request

Code

PVC145245

Select colour STANDARD

BLUE

Select colour On demand (Minimum order quantity to be agreed)

Code

PVC1626

Select colour STANDARD

BLUE

Select colour On demand (Minimum order quantity to be agreed)
