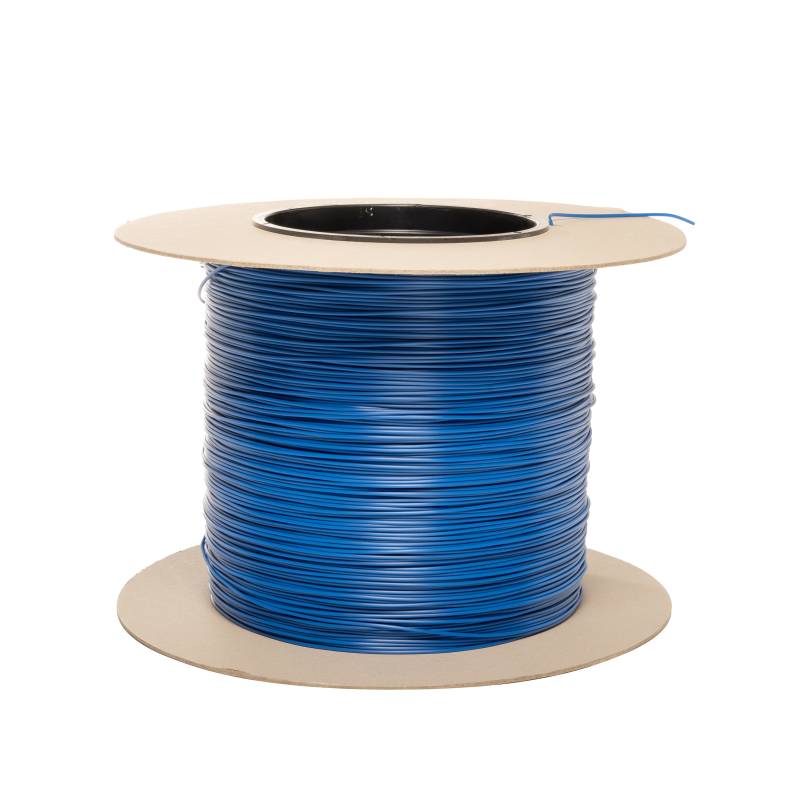

Polyurethane 87 ShA calibrated tubes

Norms

REACH

ROHS

Reg. (EC) 10/2011

Application fields

PHYSICAL/MECHANICAL PROPERTIES	TRIAL METHOD	VALUE
Hardness	DIN 53505 - ISO868	87ShA / 36ShD
Water absorption	ISO 62 - a 23°C 50% r.h.	< 1%
Density	DIN 53479 - ISO1183	1,12 g/cm³
Elongation at break	DIN53504 - ISO37	600%
Tear resistance	DIN53515 - ISO34	70 N/mm
Flexural elastic modulus	DIN53504 - ISO37	10 MPa
Abrasion loss	DIN 53516 - ISO4649	25 mm³
Break resistance	DIN53504 - ISO37	45 MPa
Working temperature	-	- 20°C / +60°C

TECHNICAL CHARACTERISTICS:

Good hydrolytic stability - Flexibility at low temperature - Resistance to the microoganisms - Good resistance to abrasion - Elevated resistance to break - Good ability of amortization - Recyclable

APPLICATIONS:

The tubes realized with this material are particularly recommended to connect automatic systems for distribution or transport of water, for dental applications, robotic, industrial machines, etc.

NORMS:

The raw material used to produce these tubes is according to:

Reg. (UE) 10/2011 of 14/01/2011 and following updating
FDA Chapter 21 § 177.1680, § 177.2600

Product list

Select colour and size and send a request

Code

PU1425

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

Select colour On demand (Minimum order quantity to be agreed)

BLUE

YELLOW

NATURAL

RED

GREEN

Code

PU16317

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

Select colour On demand (Minimum order quantity to be agreed)

BLUE

GREEN

Code

PU3344

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

Select colour On demand (Minimum order quantity to be agreed)

RED
